Choosing the Right Coordinate Measuring Machine: An Overview of TZtek CMM Series
In precision manufacturing, maintaining tight tolerances and consistent quality is critical. Whether producing automotive parts, electronics, medical devices or aerospace components, accurate measurement of complex geometries ensures reliable performance and reduces costly errors.
A Coordinate Measuring Machine (CMM) is a key tool for manufacturers to achieve high-precision measurements. These machines use probes or scanning systems to capture the dimensions of parts in three-dimensional space, providing unmatched accuracy compared to traditional measuring tools.
TZtek’s CMM Series offers a range of machines designed to meet different production and research needs, from universal production-oriented models to ultra-precision systems capable of sub-micron accuracy. In this blog, we’ll guide you through the CME, CMU and CMZ models, highlighting their features, applications and recommended industries.
Why Choose a TZtek Coordinate Measuring Machine?
CMMs provide manufacturers with:
- High precision for complex geometries
- Versatility across different part sizes and materials
- Automation capabilities to speed up inspection cycles
- Stable and reliable measurement over long-term production
- Integration potential for quality control systems and R&D labs
Understanding the unique advantages of each model helps companies select the right machine for their workflow, improving efficiency, accuracy and ROI.
TZtek CMM Series Models

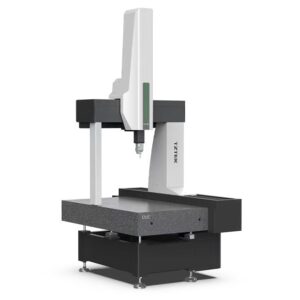

- CME – Economic Coordinate Measuring Machine
The CME is designed as a universal, production-oriented CMM, providing stable and flexible measurement solutions for both production floors and R&D centers. It combines precision, automation and versatility to handle a wide range of parts.
Key Features:
- Classic mobile bridge structure with compact and open design
- High-rigid air-bearing guides with minimal friction or wear
- High-resolution coefficient scales for enhanced accuracy
- Servo motor-driven axes positioned to minimize heat effects
- Suitable for both manual probing and automated measurement
Recommended Industries: 3C, Automotive, Aerospace, Semiconductor, Machinery, Medical & Healthcare
Best For: Manufacturers seeking a reliable, cost-effective CMM for general-purpose inspection and production applications.

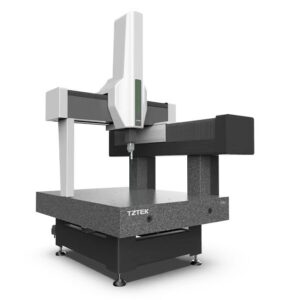

- CMU – Ultra Coordinate Measuring Machine
The CMU is a high-end CMM engineered for complex measurements requiring high efficiency and precision. Its single-side overhead moving bridge structure reduces moving mass, minimizes Abbe errors and improves motion performance and accuracy stability.
Key Features:
- Stable mechanical structure with air-bearing guides and enveloped axes
- Ultra-low linear temperature and expansion coefficient scales
- High-performance silicon carbide ceramic components for rigidity and reliability
- Safety features for Z-axis with pneumatic and hardware hold-up mechanisms
- Capable of both scanning and trigger measurement for complex geometries
Recommended Industries: 3C, Automotive, Aerospace, Semiconductor, Machinery, Medical & Healthcare
Best For: Applications requiring high precision, stability and reliability across a variety of part types and sizes.

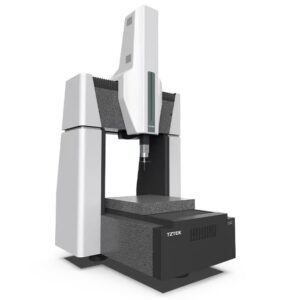

- CMZ – Zenith Coordinate Measuring Machine
The CMZ represents ultra-high precision metrology with a fixed-bridge structure, ideal for manufacturers needing sub-micron accuracy. It is designed to deliver stable performance for the most demanding inspection tasks, such as precision machining and assembly.
Key Features:
- High-rigid fixed-bridge mechanical structure using granite and silicon carbide ceramics
- Preloaded air bearings for all axes, ensuring no contact and minimal friction
- Zero expansion coefficient scales with ultra-high resolution to nanometer levels
- TZtek in-house geometric error compensation for metrology-grade accuracy
Recommended Industries: 3C, Automotive, Aerospace, Semiconductor, Machinery, Medical & Healthcare
Best For: Ultra-precision inspection of complex components where even tiny deviations can impact product quality.
Summary Table of TZtek CMM Series
| Model | Key Features | Recommended Industries | Best Use |
| CME | Mobile bridge, high-rigid air bearings, servo motor-driven axes | 3C, Automotive, Aerospace, Semiconductor, Machinery, Medical & Healthcare | General-purpose, production-oriented, cost-effective |
| CMU | Single-side overhead bridge, air-bearing guides, silicon carbide components | 3C, Automotive, Aerospace, Semiconductor, Machinery, Medical & Healthcare | Complex measurement, high precision, scanning & trigger modes |
| CMZ | Fixed-bridge, granite + silicon carbide structure, preloaded air bearings, nanometer-level scales | 3C, Automotive, Aerospace, Semiconductor, Machinery, Medical & Healthcare | Ultra-high precision, sub-micron accuracy, metrology-grade applications |
Conclusion
Choosing the right Coordinate Measuring Machine in Malaysia from TZtek depends on your measurement requirements, part complexity and production environment.
- For general production or R&D inspection, the CME provides a reliable and versatile solution.
- For high-precision, complex measurements, the CMU delivers stability and efficiency with advanced mechanical design.
- For ultra-precision, sub-micron measurement, the CMZ ensures metrology-grade accuracy for the most demanding applications.
Investing in the right CMM not only improves measurement efficiency but also supports consistent product quality, reduced errors and better ROI for manufacturers.
Frequently Asked Questions (FAQs)
How do I know whether my measurement task requires a high-end model like CMU or CMZ instead of the CME?
Choose the CMU or CMZ if your parts require higher stability, better thermal control or more advanced scanning accuracy. The CME is suitable for reliable, high-precision measurement in routine production or R&D environments.
What advantages does the CMU’s single-side overhead structure offer in real applications?
Its design reduces moving mass and lowers Abbe error, which improves accuracy stability and motion performance. This is especially beneficial for scanning tasks or parts that need consistent precision across long measurement cycles.
When is the fixed-bridge structure of the CMZ a better choice?
The CMZ is ideal when ultra-high precision is required. Its rigid fixed-bridge structure, granite components and stability make it suitable for complex components that must be measured with sub-micron accuracy.
Is the CME suitable for fast throughput environments like production floors?
Yes. The CME’s classic moving-bridge structure is designed for high efficiency, smooth motion and good openness. It performs well in production settings where consistent accuracy and speed are important.
Do all three CMM types perform well under temperature changes?
All models provide good stability, but the CMU and CMZ offer stronger thermal resistance through low-expansion materials and high-performing scales. The CME remains accurate in controlled environments but is not as focused on advanced thermal compensation as the high-end models.
