How to Select the Best Video Measuring Machine: An Overview of TZtek’s VMM Series
In modern manufacturing, precision is essential. Whether you produce electronics, automotive parts, medical devices or aerospace components, maintaining tight tolerances and consistent quality is critical. A Video Measuring Machine (VMM), also called a Vision Measuring System, allows manufacturers to perform accurate, non-contact measurements of small and complex components efficiently.
TZtek’s VMM Series provides a variety of machines designed to meet different inspection needs, from entry-level systems for basic measurements to ultra-precision machines capable of sub-micron accuracy. This blog will guide you through the series, explaining each model’s capabilities, features and ideal applications.
Why Choose a TZtek Video Measuring Machine?
VMMs use optical and video technology to capture dimensions and geometries without touching the part. This protects delicate components and allows for precise measurements that traditional contact methods cannot easily achieve.
Benefits of TZtek VMM Series include:
- Non-contact measurement for delicate and small parts
- High-resolution imaging and accurate feature detection
- Automated and semi-automated workflows for efficiency
- Customizable lighting and accessory options for complex parts
- Integration capabilities for production lines and quality control systems
With this foundation, let’s explore each VMM type in detail.
TZtek VMM Series Types

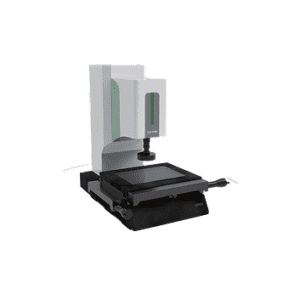

VMA – Semi-Auto Video Measuring Machine
The VMA is ideal for manufacturers who need reliable, semi-automated measurement without the complexity of fully automated systems. Its user-friendly design allows operators to measure points, lines, circles and other features efficiently.
Key Features:
- Manual zoom lens, 25–160x magnification, automatically identified by software
- Programmable surface and profile lighting
- Motorized Z-axis for automatic focusing and height measurement
- Granite base for stability and repeatable precision
- Optional accessories: contact probe, coaxial light
Best For: Small batch production and low-volume inspection in 3C, machinery and medical industries.

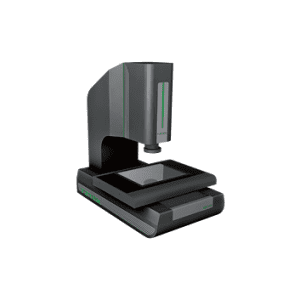

VME – Economy Video Measuring Machine
The VME provides a cost-effective solution for manufacturers beginning with video measurement. It balances simplicity with functionality, offering accurate inspections for everyday measurement tasks.
Key Features:
- Auto zoom lens with 25–160x magnification
- Programmable lighting with 6 rings and 8 segments, profile light
- Height measurement via auto-focusing
- Granite construction ensures stable and accurate measurements
- Optional accessories: chromatic confocal sensor, contact probe, coaxial light
Best For: Entry-level inspections in 3C, machinery and medical sectors. Suitable for companies starting with non-contact measurement.

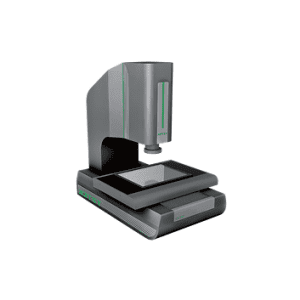

VMC – Classic Video Measuring Machine
The VMC combines versatility and precision, offering multi-functional measurement capabilities in a compact design. Its smart software and quick auto-focusing help reduce inspection time while maintaining accuracy.
Key Features:
- Auto zoom lens 25–209x
- Programmable lighting for surface and profile measurements
- Granite structure provides stability and high precision
- Smart extraction for quick feature capture
- Optional accessories: chromatic confocal sensor, contact probe, liftable lights, joystick
Best For: 3C, automotive, aerospace, semiconductor, new energy and machinery industries. Suitable for manufacturers needing advanced functionality without large floor space requirements.

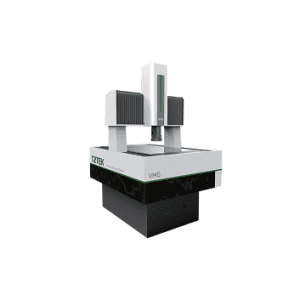

VMG – Gantry Video Measuring Machine
The VMG is designed for large components and high-volume measurement tasks. Its gantry structure allows smooth and silent operation over a wide travel range, maintaining precision even for sizable workpieces.
Key Features:
- Auto zoom lens (25–209x), optional high magnification (25–338x)
- Flying-snap and quick-focus functions for faster inspection
- Granite construction ensures accuracy and stability
- Acceleration of XY stage: 1000 mm/s²
- Optional accessories: chromatic confocal sensor, contact probe, turntable, pressure plates
Best For: 3C, automotive and aerospace industries. Excellent for measuring large or complex components efficiently.

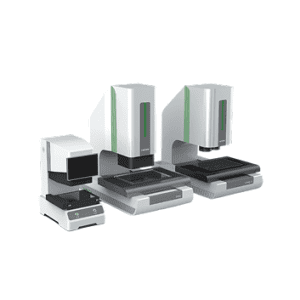

VMQ – Quick Video Measuring Machine
The VMQ focuses on speed and high-throughput measurement. It allows multiple parts to be inspected simultaneously, saving time in batch processing and production environments.
Key Features:
- High precision and efficiency with one-button quick measuring
- Wide field of view and large depth of field
- Automatic image registration for fast positioning without fixtures
- External ports for integration with production lines
- Optional accessories: chromatic confocal sensor, coaxial light, ring auxiliary light
Best For: Batch inspection in 3C, automotive and medical industries. Ideal for fast-paced quality control processes.
VMQ-G – Gantry Quick Video Measuring Machine
The VMQ-G combines a gantry structure with quick measurement technology, enabling fast and accurate inspections of larger components.
Key Features:
- Large travel range and high precision
- Wide field of view with deep focus
- Automatic image registration and joystick operation
- Granite structure ensures stability
- Optional accessories: chromatic confocal sensor, pressure plates
Best For: Factories and labs requiring rapid, accurate measurement of large or complex parts in 3C, automotive and medical industries.

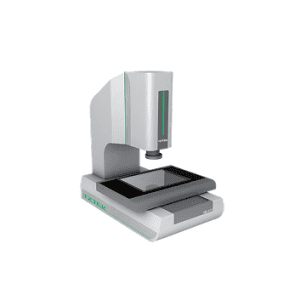

VMU – Ultra Video Measuring Machine
The VMU represents ultra-precision measurement with advanced automation features. It is designed for industries where sub-micron accuracy and fast inspection cycles are critical.
Key Features:
- Auto zoom lens (25–338x) with quick auto-focusing in 2 seconds
- Flying-snap and AI-assisted feature capture
- Granite structure for high stability
- Optional accessories: chromatic confocal sensor, contact probe, liftable lights
Best For: 3C, automotive, aerospace, semiconductor, new energy and medical industries. Perfect for high-precision applications with complex part geometries.

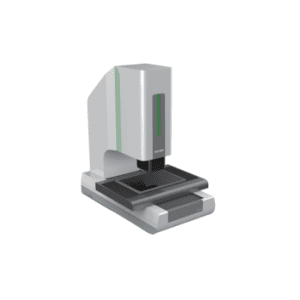

VMZ – Zenith Video Measuring Machine
The VMZ is the pinnacle of precision in TZtek’s VMM Series, achieving sub-micron accuracy for ultra-fine components. It is suitable for industries where even the smallest deviation can impact product quality.
Key Features:
- Optional microscope lenses (up to 6360x) for ultra-high magnification
- Programmable surface, profile and coaxial lighting
- Ultra-low expansion scale and granite base for extreme stability
- Optional chromatic confocal sensors for specialized measurement
Best For: Semiconductor, microassembly, 3C and aerospace applications requiring extreme precision.
Summary Table of TZtek VMM Series
| Model | Key Features | Recommended Industries | Best Use |
| VMA | Semi-auto, manual zoom 25–160x, auto-focusing | 3C, Machinery, Medical | Small batch, basic feature measurement |
| VME | Entry-level, auto zoom 25–160x, programmable lighting | 3C, Machinery, Medical | Simple inspections for beginners |
| VMC | Auto zoom 25–209x, smart extraction, quick auto-focus | 3C, Automotive, Aerospace, Semiconductor, New Energy, Machinery | Multi-functional, compact |
| VMG | Gantry, large travel range, flying-snap optional | 3C, Automotive, Aerospace | Large parts, high efficiency |
| VMQ | Quick measurement, multi-part FOV, external ports | 3C, Automotive, Medical | Fast batch inspection |
| VMQ–G | Gantry + quick measurement, large FOV, joystick | 3C, Automotive, Medical | Large or complex parts, rapid measurement |
| VMU | Ultra-precision, auto zoom 25–338x, AI feature capture | 3C, Automotive, Aerospace, Semiconductor, New Energy, Medical | High-precision, high-speed complex parts |
| VMZ | Zenith, sub-micron accuracy, optional microscope | 3C, Aerospace, Semiconductor | Ultra-high-precision microcomponents |
Conclusion
Selecting the right Video Measuring Machine in Malaysia from TZtek’s VMM Series depends on your production volume, part complexity and precision requirements. Whether you need an entry-level system like VME, a versatile classic VMC or an ultra-precision VMZ, TZtek has a solution to meet your needs.
Understanding each model’s features and applications helps manufacturers maximize accuracy, efficiency and ROI, ensuring consistent quality across all production lines. Investing in the right VMM not only improves inspection speed but also supports long-term growth and reliable quality control.
Frequently Asked Questions (FAQs)
How do I decide which TZtek VMM model is right for my production volume?
For low-volume or small-batch inspection, semi-auto or entry-level models like VMA or VME are ideal. For medium to high-volume production, consider VMC, VMG or VMQ-G, which offer faster measurement cycles and automation features.
Can TZtek VMM machines measure delicate or transparent components without causing damage?
Yes. VMMs use non-contact video measurement technology, which protects fragile parts while delivering accurate dimensions. Models like VMQ-G or VMZ also include advanced lighting and optical sensors for transparent or reflective materials.
What industries benefit most from using TZtek Video Measuring Machines?
Industries such as 3C electronics, automotive, aerospace, medical devices, semiconductor and precision machinery rely on VMMs for accurate, repeatable measurements and high-quality control.
How does automation in VMM models like VMU or VMQ-G improve efficiency?
Automated features such as flying-snap, AI-assisted feature capture and automatic image registration allow multiple parts to be measured quickly with minimal operator intervention, reducing inspection time and labor costs.
Are TZtek VMM machines suitable for measuring large components?
Yes. Gantry-type models like VMG and VMQ-G have wide travel ranges and robust structures, making them ideal for precise measurement of large or complex workpieces while maintaining stability and accuracy.
Can TZtek VMM systems integrate with production lines or QC software?
Many VMM models, including VMQ, VMQ-G and VMU, provide external ports and software integration to connect with production equipment, allowing online measurement and seamless workflow in quality control processes.
How do I ensure my operators can use a VMM effectively?
Operators should have basic knowledge of engineering drawings and GD&T symbols. TZtek provides training for machine operation, software usage and workflow optimization to ensure consistent and accurate measurement results.
What makes the VMZ model different from other TZtek VMM machines?
The VMZ Zenith Video Measuring Machine delivers sub-micron accuracy for ultra-precision applications like semiconductor, microassembly and optical components. Its advanced optics, programmable lighting and stable granite structure ensure measurements are highly reliable even at nanoscale.
