Description
Features

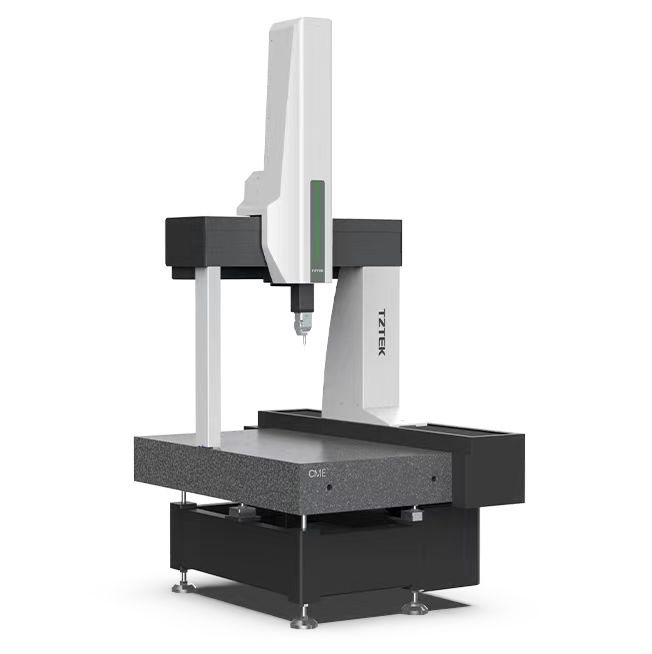

Classical structure
The classic mobile bridge structure is simple and compact with good openness and fast movement speed, providing measurement with high efficiency and high precision.
High stability
- High-rigid high-performance air-bearing guide brings neither friction nor wear or tear, and the three axes designed in an enveloping structure effectively ensure its stability.
- Application of a high-resolution coefficient scale for the three axes ensures high accuracy.
Driving mode
The three axes are driven by servo motors. The motors are arranged at the far end of all axes, effectively avoiding the effect of heat arising from their operation on the local temperature of the measuring machine.
Specification
| Model | Stroke range(mm) | Overall dimension(mm) | Main machine weight(kg) | Max. Load (kg) velocity (mm/s) | Vector motion | Vector motion acceleration (mm/s2) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | LX | LY | LZ | |||||
| 06.08.06 | 600 | 800 | 600 | 1170 | 1800 | 2725 | 1350 | 550 | 520 | 1730 |
| 08.10.06 | 800 | 1000 | 600 | 1370 | 2000 | 2725 | 1750 | 550 | 520 | 1730 |
| 10.12.08 | 1000 | 1200 | 800 | 1620 | 2200 | 2990 | 1935 | 1500 | 520 | 1730 |
| 10.15.08 | 1000 | 1500 | 800 | 1620 | 2500 | 2990 | 2240 | 1700 | 520 | 1730 |
| 12.15.10 | 1200 | 1500 | 1000 | 1888 | 2890 | 3450 | 3942 | 1850 | 450 | 1200 |
| 12.20.10 | 1200 | 2000 | 1000 | 1888 | 3390 | 3450 | 5290 | 2300 | 450 | 1200 |
| Length measurement errorMPE (EO) (µm) | Single stylus form probing error MPE (PFTU) (µm) | ||
|---|---|---|---|
| From 1.9+L/300 | From 1.9 | ||
| Precision index: According to the performance evaluation standard of CMM in ISO10360-2:2009 and ISO10360-5:2010 | |||
| Temperature requirements for measuring machine room | Power requirement | ||
| Room temperature (temperature control room) | 20°±2°C | Voltage | 220 vac±10% |
| Temperature gradient (time) | 1°C/h | Frequency | 50/60 Hz±1% |
| Temperature gradient (time) | 2°C /24h | Electric current | 10A |
| Temperature gradient (space) | 1°C/m | Power | 2.5kw |
| Air source requirement | Electrical equipment requires reliable grounding: grounding resistance is less than 4 ohms | ||
| Min. air supply pressure | 0.6MPa | Humidity requirements for measuring machine room | |
| Air consumption | 150NL/min | Relative air humidity | 25~75% |
