Description
Features

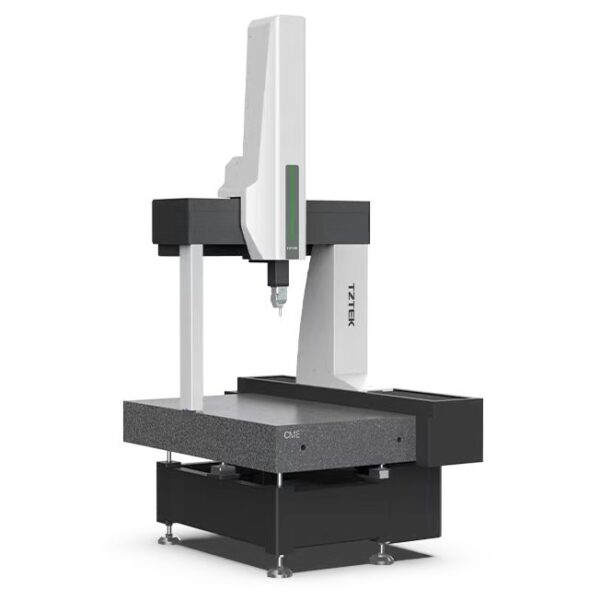

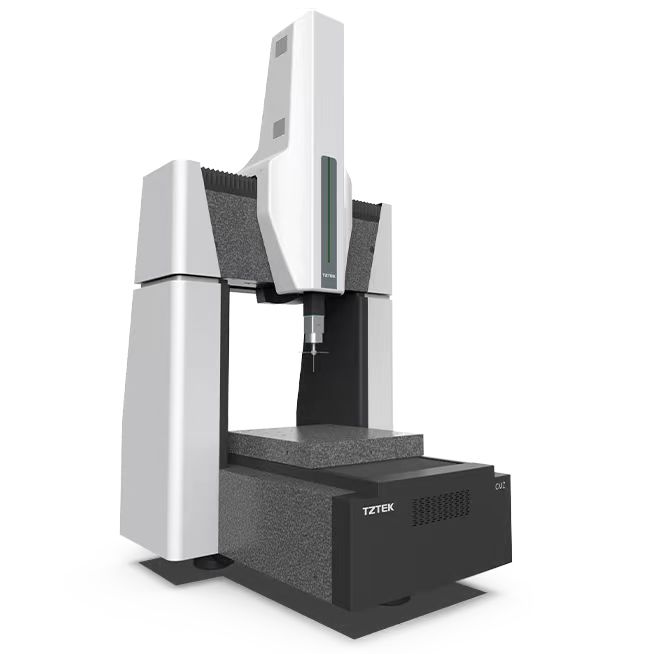

Ultra-high rigid mechanical structure
The high-rigid fixed-bridge mechanical structure, as well as the combination of granite beams, granite bases, granite columns and Z-axie made of industrial precision material silicon carbide ceramic, ensures the high stability of the mechanical structure and the strong resistance against external interference.
Ultra-high stability
- Preloaded air bearings are used for all axes, and their enveloping structure ensures high rigidity, no contact and low friction.
- Zero expansion coefficient scale, ultra-high resolution up to the nanometer level, and insusceptible to external temperature, ensures high precision and the stablity of the machine.
In-house compensation algorithm
With TZTEK in-house geometric error compensation, the accuracy can reach metrology grade.
Specification
| Model | Stroke range(mm) | Overall dimension(mm) | Main machine weight(kg) | Max. load (kg) | Vector motion velocity (mm/s) | Vector motion acceleration (mm/s2) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| X | Y | Z | LX | LY | LZ | |||||
| 06.08.06 | 600 | 800 | 600 | 1682 | 2107 | 3260 | 4757 | 400 | 520 | 1870 |
| 08.10.06 | 800 | 1000 | 600 | 1882 | 2557 | 3260 | 6207 | 500 | 520 | 1870 |
| 10.12.08 | 1000 | 1200 | 800 | 2082 | 3007 | 3660 | 8000 | 800 | 520 | 1870 |
| 10.15.08 | 1000 | 1500 | 800 | 2082 | 3582 | 3660 | 9600 | 800 | 520 | 1870 |
| 12.15.10 | 1200 | 1500 | 1000 | 2282 | 3507 | 4060 | 10800 | 1000 | 400 | 1000 |
| 12.20.10 | 1200 | 2000 | 1000 | 2282 | 4632 | 4060 | 13800 | 1000 | 400 | 1000 |
| Length measurement errorMPE (EO) (µm) | Single stylus form probing errorMPE (PFTU) (µm) | ||
|---|---|---|---|
| From 0.6+L/400 | From 0.6 | ||
| Precision index: According to the performance evaluation standard of CMM in ISO10360-2:2009 and ISO10360-5:2010 | |||
| Temperature requirements for measuring machine room | Power requirement | ||
| Room temperature (temperature control room) | 20°±1°C | Voltage | 220 vac±10% |
| Temperature gradient (time) | 0.5°C /h | Frequency | 50/60 Hz±1% |
| Temperature gradient (time) | 1°C /24h | Electric current | 6A |
| Temperature gradient (space) | 0.5°C/m | Power | 1.5kw |
| Air source requirement | Electrical equipment requires reliable grounding: grounding resistance is less than 4 ohms | ||
| Min. air supply pressure | 0.6MPa | Humidity requirements for measuring machine room | |
| Air consumption | 250NL/min | Relative air humidity | 25~75% |
